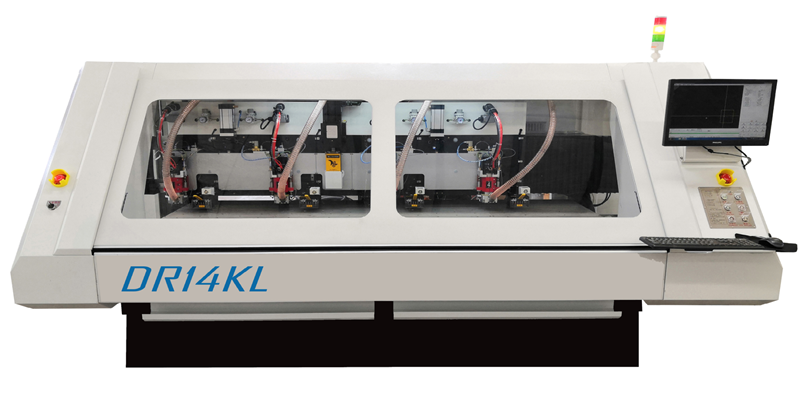

Depth Control 4 Spindles PCB Routing Machine with the new design of auto pinning function.
Product Specification:
These Machine accessories May you like

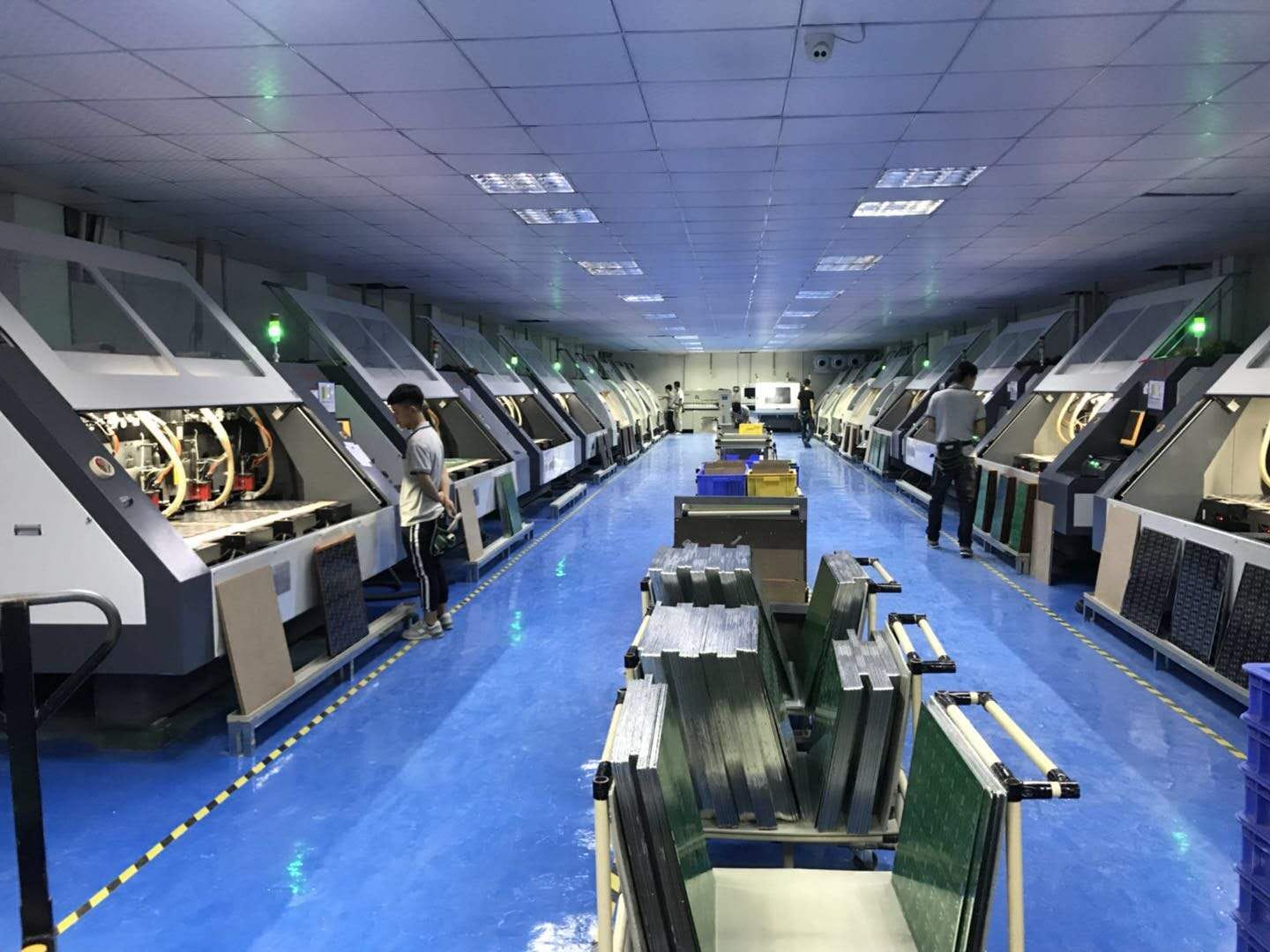

Kexin Electronics could provide the pcb routing machine such as 4 spindles pcb routing machine. Our machines have obtained the national
patent with the new design of auto pinning function. This new achievement will improve the processing efficiency while routing.
Also, the machine includes the blind routing function for the multilayers boards. And the Tool Broken Detector, Tool length Detector,
aotu tool change, machine tool cleaning button and so on are assembled.
| Model | PCB CNC Router_DR14KL |
| No. of Z axis | 4 |
| No. of Spindle | 4 |
| Spindle Speed | 60k rpm / min |
| Processing area of each axis | 580mm×730mm |
| XYZ axial movement stroke | 600mm×825mm×55mm |
| Number of tools per axis | 66 pcs |
| Drilling diameter | φ0.5-φ6.35mm |
| Milling diameter | φ0.6-φ3.175mm |
| XY Axial max. movement speed | 28m/min |
| Ｚ Axial max. movement speed | 25m/min |
| System resolution ratio | 0.001mm |
| Positioning Accuracy | ±0.01mm |
| Repeatability Accuracy | ±0.005mm |
| Routing precision | ±0.05mm |
| Depth control precision | ±0.05mm |
| Power requirements | 3P/380V/50Hz (±5%); 3KW |
| Compressed air requirement | 300L/min |
| Cooling water requirement | 18℃-25℃ |
| Environmental temperature | 20℃-25℃ |
| Ambient humidity | 50%-75% |
| Noise | ≤75dBA |
| Machine Size | 3.24m×1.93m×1.62m（L×W×H） |
|
Accessories name |
Specifications | Quantity | Brand |
| X axis- ball screw | 25×10-1180 | 1 | HIWIN(Taiwan, China) |
| Y axis- ball screw | 25×10-1330 | 1 | HIWIN(Taiwan, China) |
| Z axis- ball screw | 25×10-320 | 1 | HIWIN(Taiwan, China) |
| X axis-guide rail and slide block | 30×2680 | 2 | HIWIN(Taiwan, China) |
| Y axis-guide rail and slide block | 30×1350 | 4 | HIWIN(Taiwan, China) |
| Z axis-guide rail and slide block | 20×280 / 20×160 | 4/2 | HIWIN(Taiwan, China) |
| X/Y/Z axis-Servo Motor and Driver | 2KW | 3 | Delta(Taiwan, China) |
| X/Y/Z axis- Bearing | BS2047TN1/P4GB | 6 | NSK(Japan) |
| Spindle | KL-60C—2E | 4 | KLKJ（China） |
