Kexin Electronics
PCB Drilling Routing Solutions Since 2006

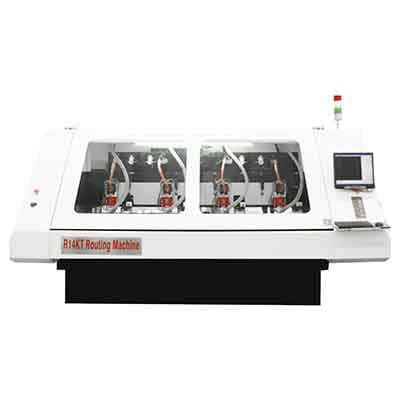

Routing in pcb is the important process. And we have our own professional team and the factory covering an area of 20,000 square meters. We could provide the pcb routing machine with 2 spindles, 4 spindles, 6 spindles etc.with Automatic pinning &De-ping f
Product Specification:
These Machine accessories May you like

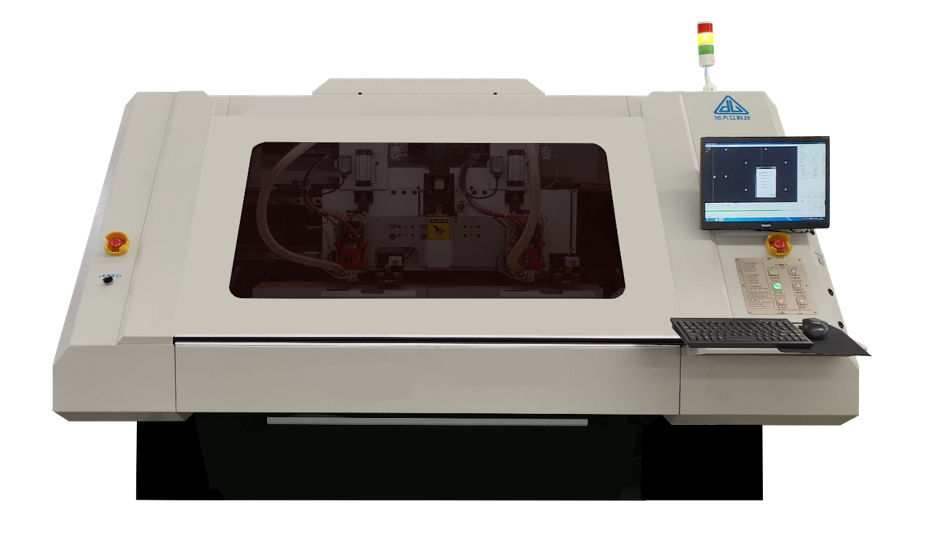

| Model | PCB CNC Router_R12KL |
| No. of Z axis | 1 |
| No. of Spindle | 2 |
| Spindle Speed | 60k rpm / min |
| Processing area of each axis | 680mm×830mm |
| XYZ axial movement stroke | 700mm×925mm×55mm |
| Number of tools per axis | 66 pcs |
| Drilling diameter | φ0.5-φ6.35mm |
| Milling diameter | φ0.6-φ3.175mm |
| XY Axial max. movement speed | 28m/min |
| Ｚ Axial max. movement speed | 25m/min |
| System resolution ratio | 0.001mm |
| Positioning Accuracy | ±0.01mm |
| Repeatability Accuracy | ±0.005mm |
| Routing precision | ±0.05mm |
| Power requirements | 3P/380V/50Hz (±5%); 3KW |
| Compressed air requirement | 300L/min |
| Cooling water requirement | 18℃-25℃ |
| Environmental temperature | 20℃-25℃ |
| Ambient humidity | 50%-75% |
| Noise | ≤75dBA |
| Machine Size | 2290mm×2180mm×1600mm (L×W×H) |
|
Accessories name |
Specifications | Quantity | Brand |
| X axis- ball screw | 25×10-1180 | 1 | HIWIN(Taiwan, China) |
| Y axis- ball screw | 25×10-1180 | 1 | HIWIN(Taiwan, China) |
| Z axis- ball screw | 25×10-320 | 1 | HIWIN(Taiwan, China) |
| X axis-guide rail and slide block | 30×1560 | 2 | HIWIN(Taiwan, China) |
| Y axis-guide rail and slide block | 30×1300 | 2 | HIWIN(Taiwan, China) |
| Z axis-guide rail and slide block | 20×280 / 20×160 | 2/2 | HIWIN(Taiwan, China) |
| X/Y/Z axis-Servo Motor and Driver | 2KW | 3 | Delta(Taiwan, China) |
| X/Y/Z axis- Bearing | BS2047TN1/P4GB | 6 | NSK(Japan) |
| Spindle | KL-60C—2E | 2 | KLKJ（China） |
