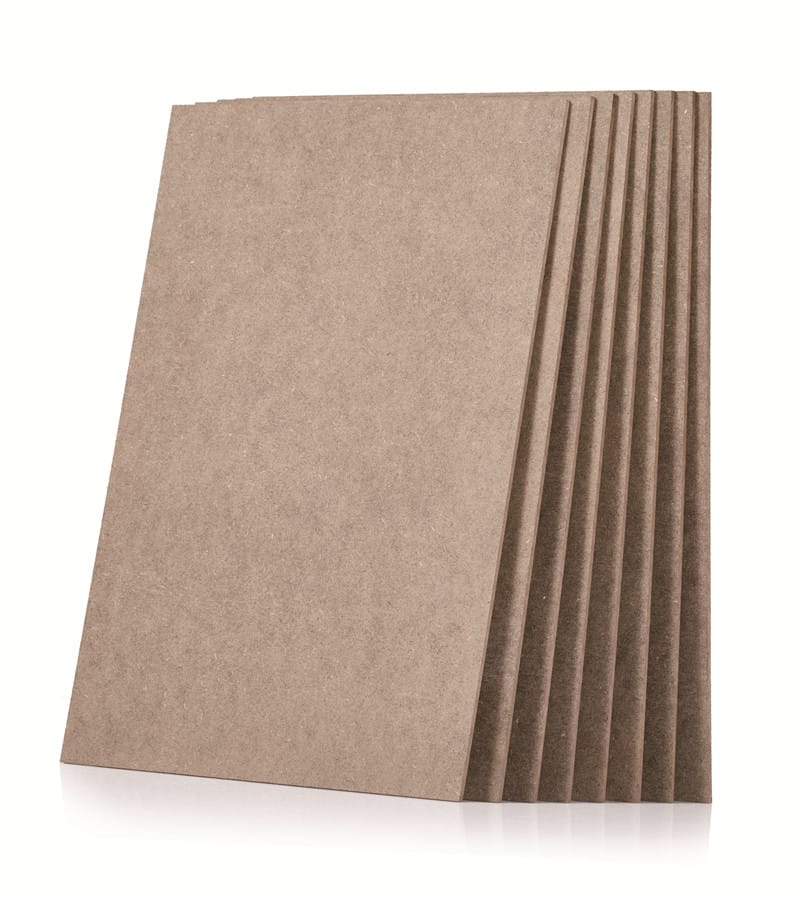

WOOD BACKUP BOARD

Application : Suitable for FPC,HDI and Multilayer PCB Drilling Advantaage: Use water -based environmental protection materials ,no pungent smell Glossy surface,

Product Specification:

Thickness : 2.5/ 2.0 mm
Thickness Tolerance : ±0.15
Surface Hardness (Shore-D) : 75±5, 80±5
Density (Kg/m3) : 880±15, 960±15
Size (inch) : 37*49/ 41*49/ 43*49
Size Tolerance (mm) : ±3
Warpage : ≤0.6% of dia

Inquiry Now

These Machine accessories May you like

Product Details

Application :

Suitable for General PCB Drilling

Advantage:

● Surface is harder,smooth,can reduce the drilling burrs
● Economic selection can reduce the drilling cost
● Environment protect ,no pollution and Recyclable

TYPE	Thickness (mm)	thickness tolerance	surface Hardness （Shore-D）	Density (kg/m³)	size	Size tolerance （mm）	Apperance	Warpage
DXE-25-HDF	2.5	±0.15	75 ±5	880 ±50	37"49" 41"49" 43"*49"	±3	Naturl color allow some color difference	≤0.6%
DXE-20-HDF	2.0	±0.15	75 ±5	880 ±50	37"49" 41"49" 43"*49"	±3	Naturl color allow some color difference	≤0.6%
DXE-25-HDF	2.5	±0.15	80 ±5	940 ±50	37"49" 41"49" 43"*49"	±3	Naturl color allow some color difference	≤0.6%
DXE-20-HDF	2.5	±0.15	70±5	830 ±50	37"49" 41"49" 43"*49"	±3	Naturl color allow some color difference	≤0.6%
