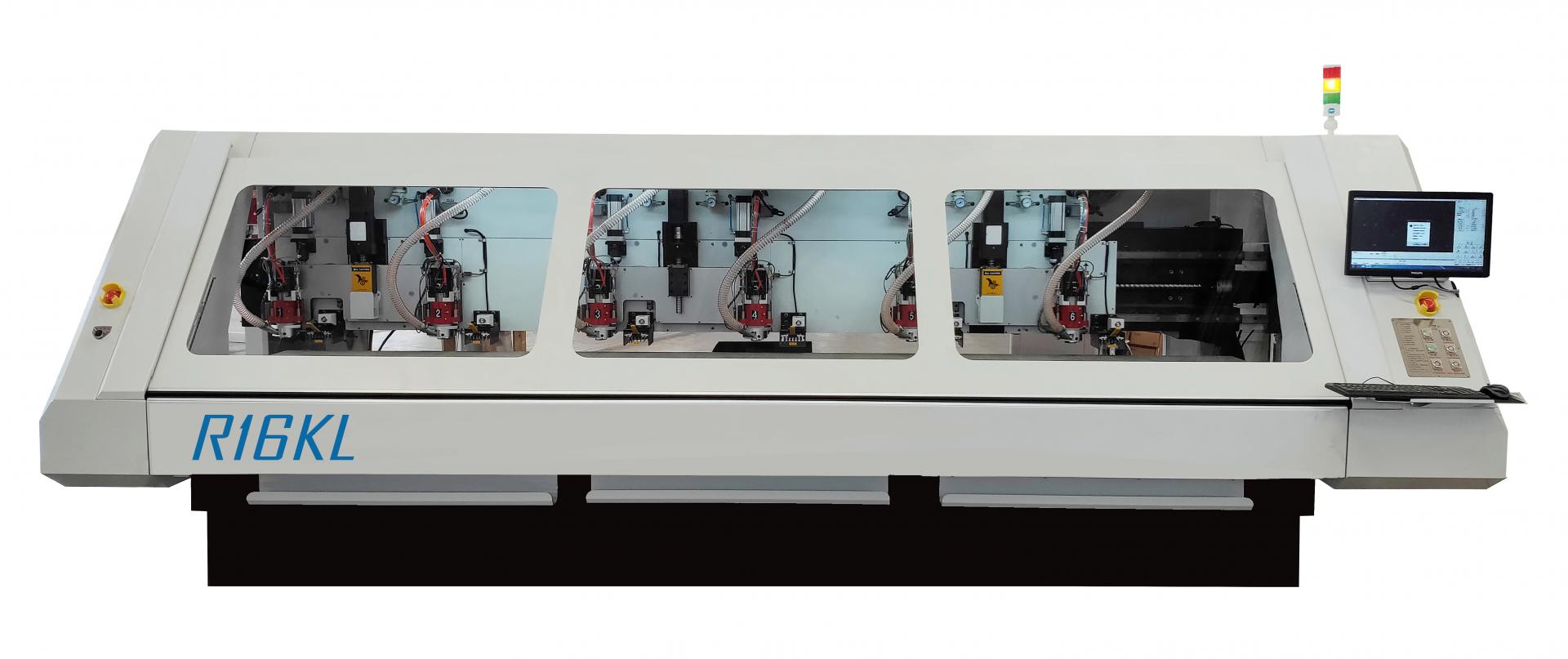

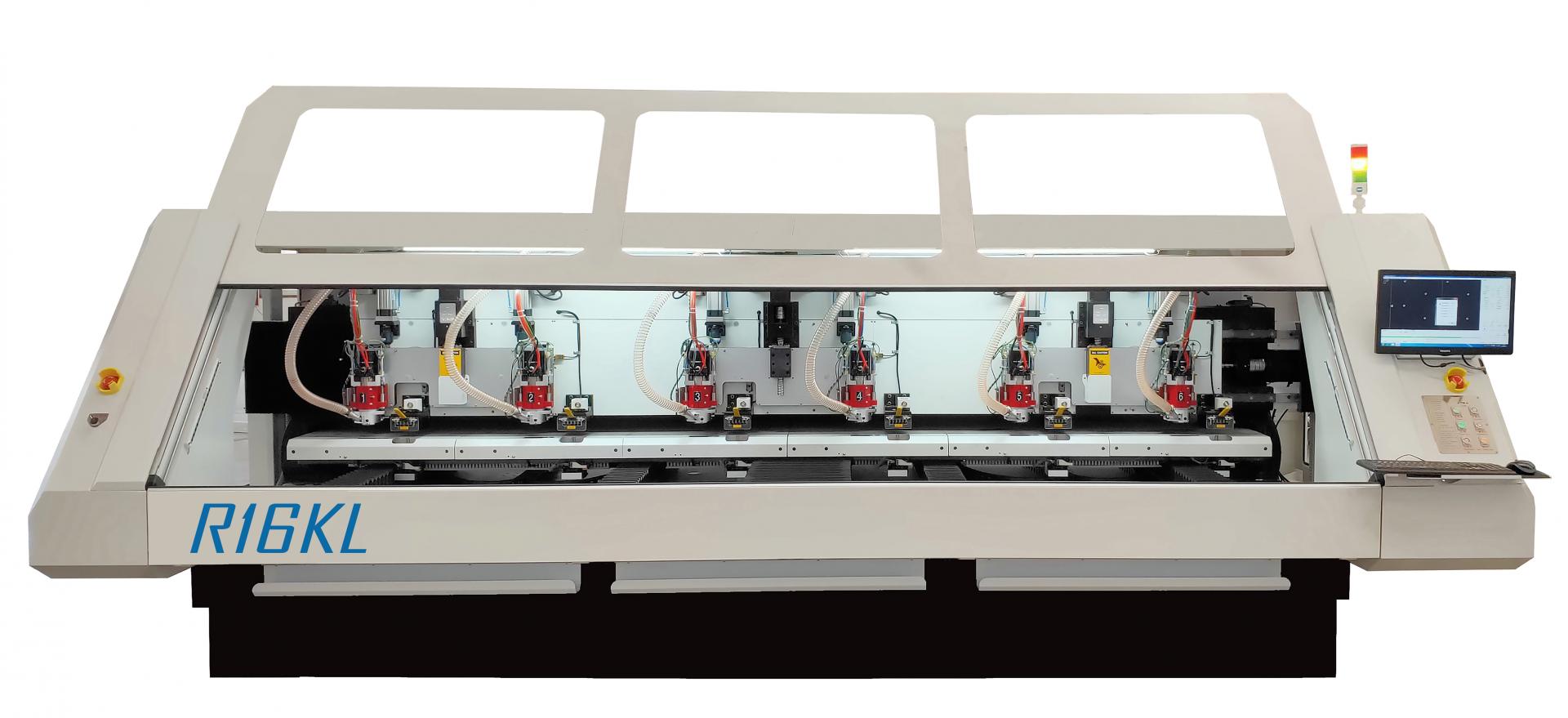

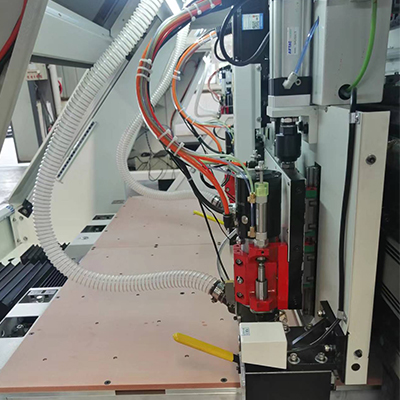

CNC 6 Spindles PCB Routing Machine R16KL

6-spindles pcb routing machine are the hot sale machines and its spares are imported from the famous brands such as the HIWIN ball screws, Delta Servo Motor and Driver, NSK bearings, SMC cylinders, Panasonnic Amplifier etc.

Product Specification:
  • No. of Z axis:3 :
  • No. of Spindle:6 :
  • Processing area of each axis:650mm×830mm :
  • XYZ axial movement stroke:670mm×925mm×55mm :
  • Number of tools per axis:66 pcs :
  • Routing diameter:φ0.6-φ3.175mm :
Inquiry Now
Product Details











    Technical Features

  • Natural-granite base
  • CBD Electrical Connected Broken-tool Detection
  • Real-time response, no missing-routing

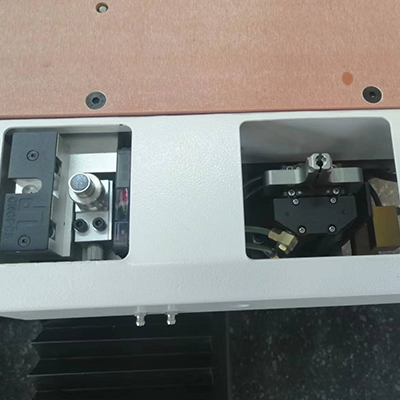

  • Tool change :Hitachi Or Euro method
  • Optional: Automatic collet cleaning function
  • Optional: Automatic pinning &De-ping function
Model PCB CNC Router_R16KL
No. of Z axis 3
No. of Spindle 6
Spindle Speed 60k rpm / min (80k rpm)
Processing area of each axis 630mm×8300mm
XYZ axial movement stroke 650mm×925mm×55mm
Number of tools per axis 66 pcs
Drilling diameter φ0.5-φ6.35mm
Milling diameter φ0.6-φ3.175mm
XY Axial max. movement speed 35m/min
Z Axial max. movement speed 25m/min
System resolution ratio 0.001mm
Positioning Accuracy ±0.01mm
Repeatability Accuracy  ±0.005mm
Routing precision ±0.05mm
Power requirements 3P/380V/50Hz (±5%); 3KW
Compressed air requirement  300L/min
Cooling water requirement 18℃-25℃
Environmental temperature 20℃-25℃
Ambient humidity 50%-75%
Noise ≤75dBA
Machine Size 4700mm×2130mm×1600mm (L×W×H)

Accessories name

Specifications Quantity Brand
X axis- ball screw 32×20-1260 1 HIWIN(Taiwan, China)
Y axis- ball screw 32×20-1260 1 HIWIN(Taiwan, China)
Z axis- ball screw 25×10-320 3 HIWIN(Taiwan, China)
X axis-guide rail and slide block 35×3960 2 HIWIN(Taiwan, China)
Y axis-guide rail and slide block 35×1480 2 HIWIN(Taiwan, China)
Z axis-guide rail and slide block 20×280 / 20×160 6/6 HIWIN(Taiwan, China)
X/Y/Z axis-Servo Motor and Driver 3KW; 3KW; 750KW 1/1/3 Delta(Taiwan, China)
X/Y/Z axis- Bearing BS2047TN1/P4GB; 1205; 2047 4/2/6 NSK(Japan)
Spindle KL-60C—2E 6 KLKJ(China)
